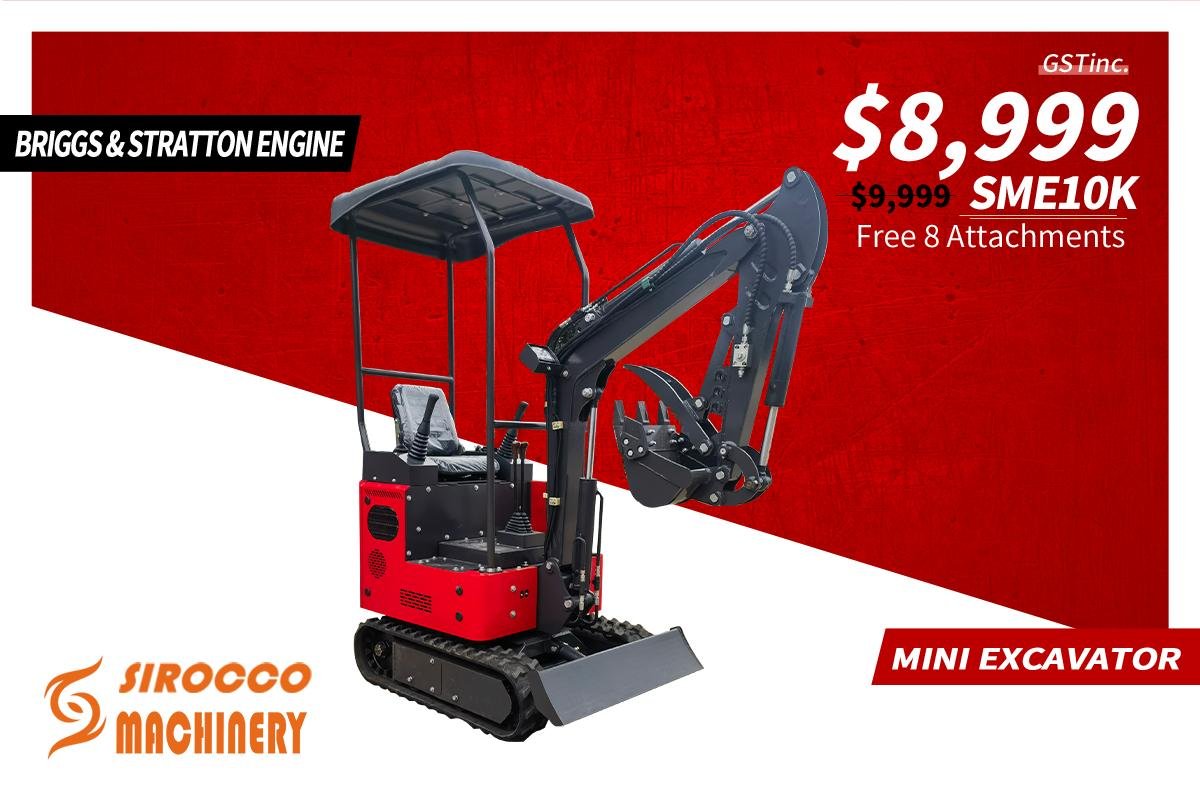

KOOP/B&S Engine SME10 Mini Excavator with 8 Attachments

General Specifications

• Operating Weight: 1000 kg

• Bucket Capacity: 0.028 m³

• Working Device Form: Excavator

• Weight: 810KG

Engine Specifications

• Models: Koop 192 / Bailitong 420

• Rated Output Power/Speed: 7.6 KW / 8.3 KW

• Maximum Torque: 3600 r/min

Performance

• Maximum Travel Speed: 4 km/h

• Slewing Speed: 10 rpm

• Maximum Climbing Ability: 30°

• Maximum Digging Force: 6 KN

Dimensions

• Total Length (Transportation): 2200 mm

• Total Width: 940 mm

• Total Height (with/without ceiling): 2250/2000 mm

• Bulldozer Blade Width: 940 mm

• Bulldozer Blade Height: 220 mm

• Maximum Cleaning Depth: 240 mm

• Maximum Ground Clearance Height: 150 mm

• Caterpillar Band Center Distance: 710 mm

• Standard Caterpillar Band Board Width: 180 mm

• Platform Clearance: 360 mm

• Standard Bucket Width (with/without side teeth): 415 mm/380 mm

• Total Length of Caterpillar Band: 1200 mm

Caterpillar Band

• Ground Pressure: 0.4 kgf/cm²

• Caterpillar Band Material: Rubber

• Tension Type: Screw tension

Hydraulic System

• Hydraulic Pump Type: Gear pump

• Hydraulic Tank Capacity: 17.5 L

• Engine Oil Capacity: 2 L

• Fuel Tank Capacity: 8.6 L

• Working Pressure: 10 MP

• Flow: 10.8 L/min

Operating Parameters

• Maximum Excavation Height: 2550 mm

• Maximum Unloading Height: 1800 mm

• Maximum Excavation Depth: 1650 mm

• Maximum Vertical Arm Excavation Depth: 1600 mm

• Maximum Excavation Distance: 2580 mm

• Minimum Turning Radius at Front End: 1550 mm
