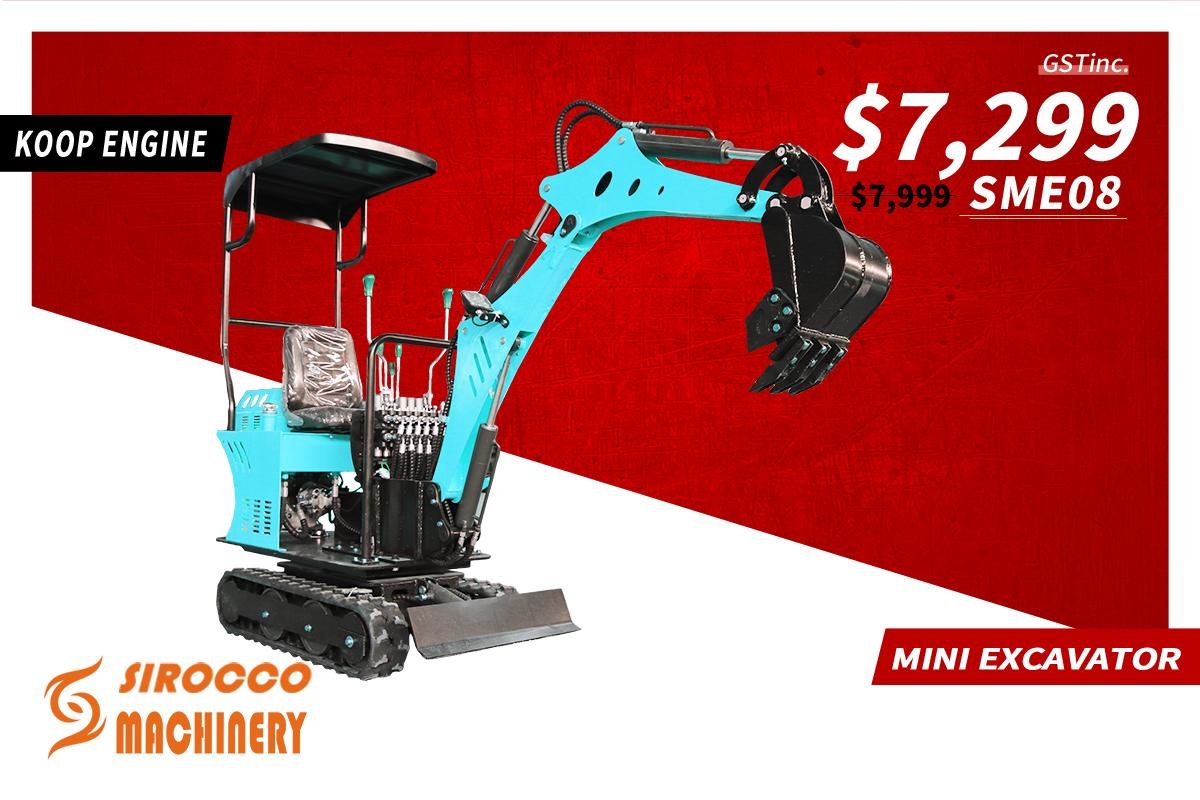

KOOP Engine SME08 Mini Excavator

General

• Operating Weight: 800 kg

• Bucket Capacity: 0.02 m³

• Working Device Form: Excavator

• Weight: 650KG

Engine

• Model: Koop 192

• Rated Output Power/Speed: 8.3 KW / 3600 rpm

• Maximum Torque: 3600 r/min

Performance

• Maximum Travel Speed: 3 h/km

• Slewing Speed: 8 rpm

• Maximum Climbing Ability: 30°

• Maximum Digging Force: 5.5 KN

Dimensions

• Total Length (Transportation): 2100 mm

• Total Width: 790 mm

• Total Height (with/without ceiling): 1820 mm

• Bulldozer Blade Width: 770 mm

• Bulldozer Blade Height: 175 mm

• Caterpillar Band Center Distance: 600 mm

• Standard Caterpillar Band Board Width: 180 mm

• Platform Clearance: 360 mm

• Standard Bucket Width (with/without side teeth): 320/285 mm

• Total Length of Caterpillar Band: 1250 mm

Caterpillar Band

• Ground Pressure: 0.3 kgf/cm²

• Caterpillar Band Material: Rubber

• Tension Type: Screw tension

Hydraulic System

• Hydraulic Pump Type: Gear pump

• Hydraulic Tank Capacity: 26.8 L

• Engine Oil Capacity: 2 L

• Fuel Tank Capacity: 8.6 L

• Working Pressure: 10 MP

• Flow: 10.8 L/min

Operating Parameters

• Maximum Excavation Height: 2450 mm

• Maximum Unloading Height: 1720 mm

• Maximum Excavation Depth: 1400 mm

• Maximum Excavation Distance: 2150 mm

• Minimum Turning Radius at Front End: 1260 mm
